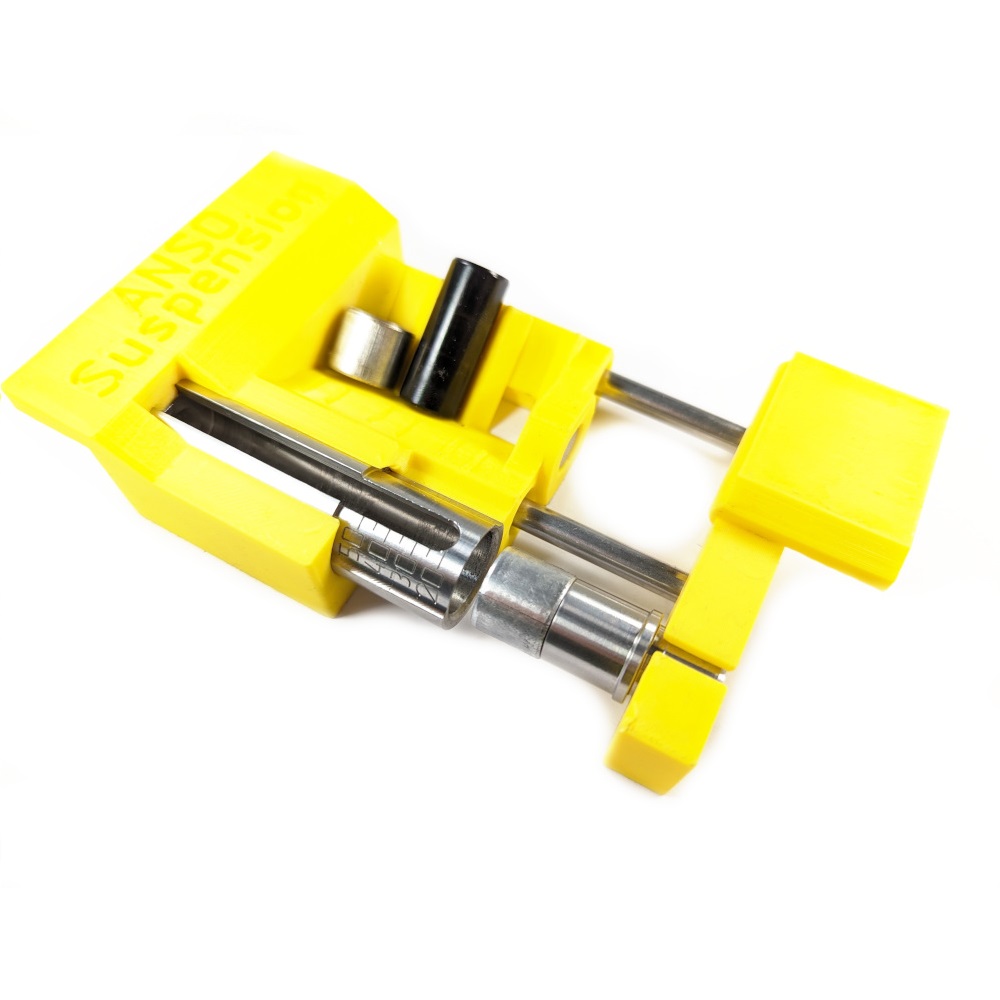

Shock Bushing Tool PRO – Fox, RockShox Rear DU & Eyelet Mount

Description

Professional Vise Mount & Shock Bushing Tool for fast, smooth and precision DU bushing and shock mount replacement.

Features:

• Bushing and mount removal and installation

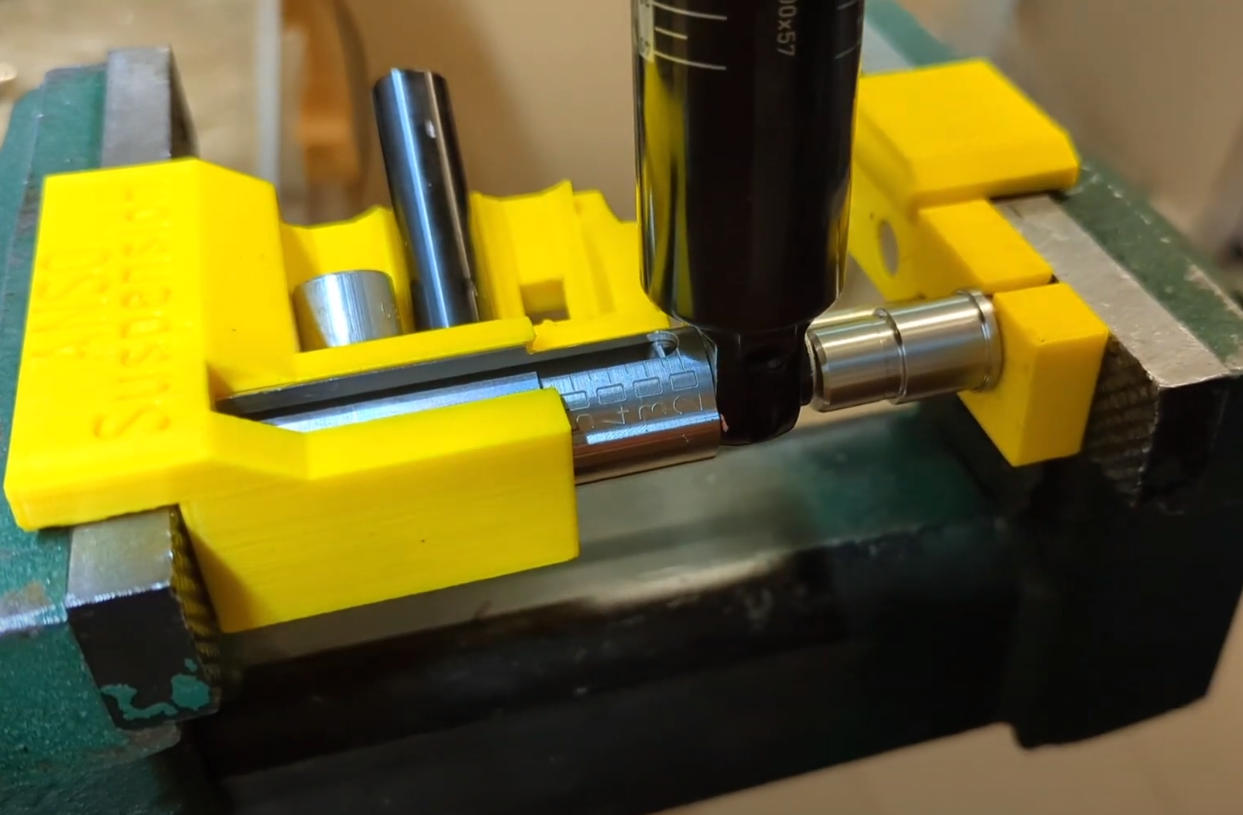

• Operation in vise provides super fast and easy work
• Enough long for the synchronic removal of bushing and mount
• The measuring line helps install the shock mount at the center of the eyelet
• CNC machined from stainless steel
• The thickness of the top part is only 1.5mm – making it compatible even with very tight/low-space eyelet geometry
• Two linear guide rods ensure tool alignment and precision
• Bushing and mount holder
• Strong neodymium magnets to hold the tool in vise

Support replacement:

• Standard 15mm and 15.1mm bushings used by Fox, RockShox, X-Fusion, some Cane Creek, DVO, Manitou, EXT, Ohlins, MRP, ELKA and other shocks
• Cane Creek 14.7mm bushings
• Standard 12.7mm shock mount with lengths up to 60mm

PRO Shock Bushing Tool vise requirements:

• Minimal vise opening travel 121mm (4.75 inch)
• Recommended vise opening travel 141mm (5.55 inch) or more
• Minimal vise jaw size 80mm (3.15 inch)
